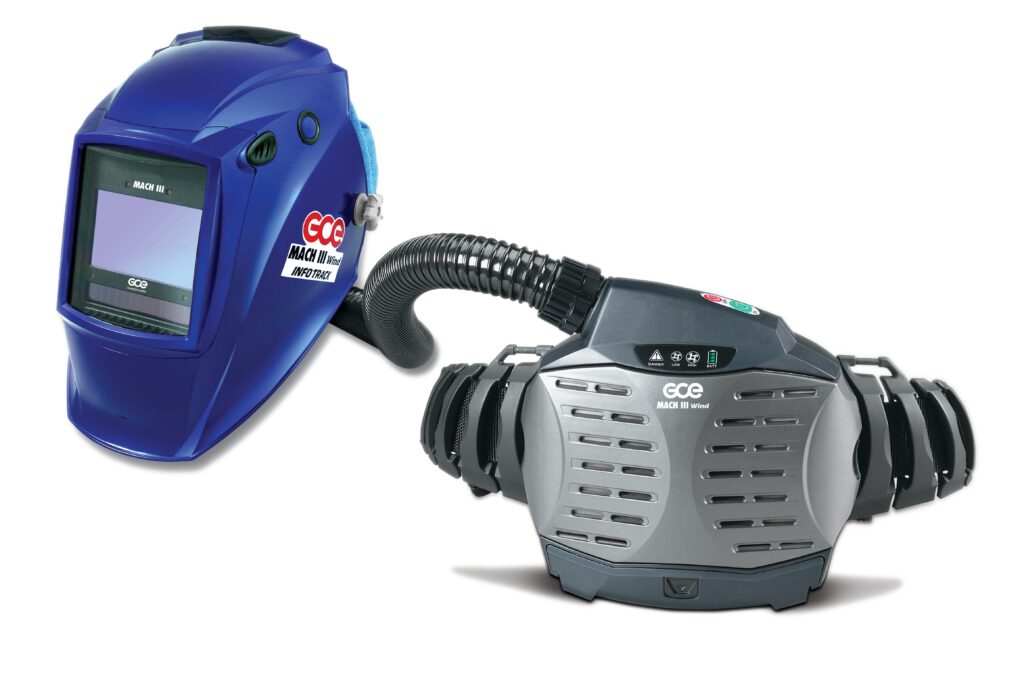

MACH 3 WIND

ColorView optic technology feature will be available beg 2018.

Mach 3 Wind is an integrated protection system which combines the high technology of a LCD filter  with digital controls with the advanced Powered Air Purifying Respirator (PAPR) with rechargeable battery. The ventilation system, the connection equipment and the lightweight helmet ensure comfort and ease of use rarely seen before.

The new LCD filter ColorView Infotrack allows to see the workpiece in colors and to monitor the welding time and enviroment’s temperature.

HELMET WITH LCD FILTER FEATURES

  • OPTICAL CLASS: 1/1/1/2
  • Large viewing area for maximum comfort (97 × 60 mm)
  • 4 Sensors
  • Environment´s Temperature measurement.
  • Welding Time tracking and Alarm setting.
  • Digital regulation of all the parameters on a LCD display
  • WELD-mode (# 9-13) suitable for MIG/TIG welding
  • CUT-mode (# 5-9) suitable for Oxygas cutting and welding
  • X-mode (# 9-13 high sensitive) suitable for Plasma and all the processes requiring high sensitivity
  • GRIND-mode (external button) suitable for grinding operations
  • Sensitivity adjustment
  • Delay time adjustment (dark to light time)
  • Headgear light and fully adjustable
  • Weight: Helmet 610g
  • WARRANTY: 24 months

VENTILATION UNIT FEATURES

  • Particle filter certified EN 12941 TH2 P (SL) (typically 2 months use)
  • Odour filter with active charcoal (optional)
  • Acoustic and vibration alarm where ventilation is not effective
  • Adjustable ventilation air flow (160 l/min or 200 l/min)
  • Rechargeable battery (typical 10 hours use)
  • Battery Recharge time: 3 hours
  • Battery charger included
  • Supplied with belt and shoulder bands (for a better comfort)
  • Flow meter included to verify actual system ventilation
  • Air hose length : 87cm
  • Weight: PAPR 1350g – Air hose 220g
  • Warranty: 12 months

AVAILABLE AFTER SELLING OUT THE PREVIOUS MODEL – ColorView optic technology feature will be available beg 2018.

Art. Nr. DescriptionQt.
AD020001Mach 3 CV WIND – INFOTRACK with ColorView LCD filter1

AVAILABLE UNTIL STOCK LASTS

Art. Nr.DescriptionQt.
19009001Mach III WIND – INFOTRACK (old model)1

MACH 3 WIND – SPARE PARTS FOR HELMET

Art. Nr.DescriptionQt.
19009013WTKHelmet blue MACH 3 WIND 1
AD030006LCD filter MACH 3 – ColorView, Infotrack1
WP110350Battery for LCD filter (CR2450 Lithium battery)1
19009017CExternal Protective Lens curved MACH 35
19009019Internal Protective Lens 63×106×110
19009028CRubber gasket for curved glass 1
19009029CFront filter frame blue for curved glass1
19009038Heat protection frame for LCD (aluminium), (protection up to 80°C)1
AD030001Headgear MACH with extenden pad1
14008384Sweatband for headgear MACH 5
19009021Face sealing hood in blue cotton1
19009011Air hose (87 cm) complete with connectors and cover (blue) Magnifying lenses on request1

MACH 3 WIND – SPARE PARTS FOR VENTILATION UNIT

Art. Nr.DescriptionQt.
19009007Ventilation unit cover1
19009008Sparks filter1
19009005Pre-filter10
19009003Particle filter TH2 P(SL)1
19009009Odour filter with active charcoal (optional)1
19009027Ventilation unit (Motor + cover)1
19009023Battery for ventilation unit1
19009025Battery Charger Single1
19009030Belt set1
19009031Belt cushion1
19009032Shoulder strap1

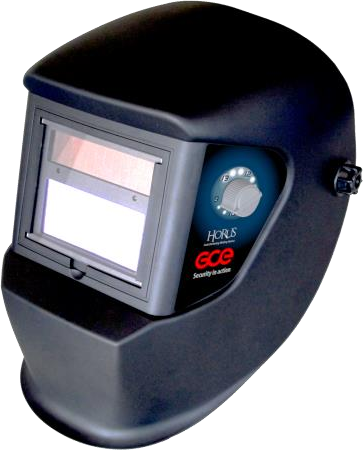

Horus

Product identification

Part number :
19006000 – MASK LCD HORUS 9-13

Reference standards

89/686/EEC
EN-379 (LCD filter) EN-175

Description & Applications

The automatic LCD welding mask HORUS is a very reliable device for labour protection specially designed for MIG and MMA welding applications.
It can efficiently protect operator’s eyes and face from injuries caused by the arc during welding operations. The Auto-darkening filter protects the user against harmful UV/IR rays, both in the dark and light state.
Thanks to its excellent quality and its intuitive adjustments, it is ideal for all the infrequent welders that want to have a highly-affordable device.
General applications:
GMAW (MIG/MAG) – SMAW (MMA)

Filter Specifications :

Optical Class:

1/1/1/2

Sensitivity Control:

3 steps Internal Adjustment

View Area:

90x40mm (3600 mm2)

Delay Control:

0.1 – 0.5 – 0.9 sec

3 steps Internal Adjustment

Type of LCD filter:

Analog

Grinding mode:

YES

Filter Size:

110x90x9mm

Power supply:

Solar Cells + Lithium battery not replaceable

ARC Sensing:

2 sensors

Operating Temperature:

-10 / +65 °C (14 / +149 °F )

Switching Time:

0,1 ms

UV / IR Protection:

up to Shade 15 (permanent)

Light Shade:

#4

Auto power off

YES

Dark Shade:

#9-13 External Adjustment
