BONDED ABRASIVES

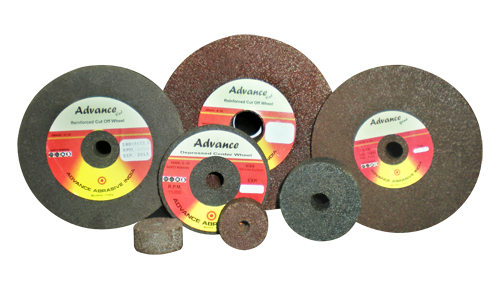

Rainforced cut-off wheels

Rainforced Cut – Off Wheels are manufactured using Aluminum Oxide & Silicon Carbide. Our ranges of Cut – Off wheels are used for wide range of metal cutting, parting, grinding, etc applications in industry. Advance Abrasive Cut-off wheels and center wheels are cost effective yet long life. These Cut – Off wheels are sturdy in design and accurate in functioning. All our products are manufactured using the most modern technology and pass through stringent quality standards in terms of its dimensions, shape and functionality.

DIA (MM)THICKNESS (MM)BORE (MM) CODE
100116 A- 46
100216 A- 36
1003.216 A- 30
1801.522.23 A- 36
180222.23 A- 30
1803.222.23 A- 30
2301.522.23 A- 36
230222.23 A- 30
2302.219.05 A- 30
2303.222.23 A- 30
2501.525.4 A- 36
3001.525.4 A- 36
300225.4 A- 30
3003.225.4 A- 30
350225.4 A- 30
3503.225.4 A- 30
4003.225.4 A- 30
4003.825.4 A- 30
400425.4 A- 30

Depressed Center Wheels

Depressed Center Wheels are manufactured using premium Aluminum Oxide & Silicon Carbide Wheels. Our range of Depressed Center wheels are used for grinding, cleaning metal Surface, cutting of gates, risers and finishing surface. These wheels also find application in welding industry like removal of welded radius, and descaling after welding and cutting. In addition, these wheels are also used in surface finishing of firebricks, tiles, wood, stainless steel welds, etc.

DIA (MM)THICKNESS (MM)BORE (MM)CODE
1004.416A- 24
100616A- 24
180622.23A- 24
180722.23A- 24
230722.23A- 24

Non Rainforced Cut off Wheels

Non Rainforced Cut off Wheels are design for use on fixed base type of machines where work is secure clamped, guarded, and where the wheel operates on controlled cutting plain with no twisting or lateral stresses. These wheels are designed and manufactured for easy performance, safety, low cost and are readily available for wide range of applications. From metal cutting and parting where side pressure applied on the wheel is low, to notching on hardened nozzles, collets and cutting small diameter stainless steel rods.

DIA (MM)THICKNESS (MM)BORE (MM)CODE
150131.75A- 60
1501.531.75A- 60
200131.75A- 60
2001.531.75A- 60
2501.531.75A- 60

Grinding Wheels

The art of producing high quality grinding wheels consists in finding out the correct composition of raw materials, combined with correct production procedure for every individual application. Grinding wheels manufactured by Advance Abrasives are in huge demand in the industry. The demand relies on the efficiency, accuracy and design which enables it to distinguish amongst its competitors. Grinding wheels are widely used in all the industries like in Welding shops, metal, steel mills, automobile industries and foundries for heavy stock removal.

DIA (MM)THICKNESS (MM)BORE (MM)
100616AS PER REQUIREMENT
1001316AS PER REQUIREMENT
100612.7AS PER REQUIREMENT
1501316AS PER REQUIREMENT
1502016AS PER REQUIREMENT
1502516AS PER REQUIREMENT
3004031.75AS PER REQUIREMENT
3505050.8AS PER REQUIREMENT
40065152.4

AS PER REQUIREMENT



Glass Grinding Wheels

Glass Grinding Wheels are manufactured from Silicon Carbide Grits Black / Green “C40”, C60” and “C80 with marking on the wheels respectively. These special wheels made from silicon carbide grits are used for glass grinding, chamfering and giving various shapes, engraving designs on glass. The company has designed and developed these special type of wheels for rough grinding, medium grinding and finishing operations in glass industry.

DIA (MM)THICKNESS (MM)BORE (MM)CODE
100716C – 46 to 80
100816C – 46 to 80
100916C – 46 to 80
1001016C – 46 to 80
100716C – 120

Segment Wheels

Segment Wheels are manufactures in different sizes and shapes as per requirement of different types of machines and customers requirements. We are a well recognized and specialized company engaged in manufacturing of segment wheels which find application across the industries. All these wheels are accurate in functioning consuming less time and have efficient design, functionality and many other features. These are used on rotary table surface grinding operation or vertical spindle reciprocating table surface grinding machines for large material removal or precision surface finish.

Cup Wheels


Cup wheels manufactured by us are used on rotary as well as reciprocating table surface grinding machines. Cup wheels are generally used to remove heavy materials. Our ranges of Cup Wheels are suitable for straight edge or flat surface polishing. Advance Abrasives brings forth a unique collection of cup wheels which are extensively used in various industries. Our ranges of cup wheels is able to cut all types of metals with maximum finishing and are available at competitive prices to suit the budget of our clients.
