FLASH BACK ARRESTOR

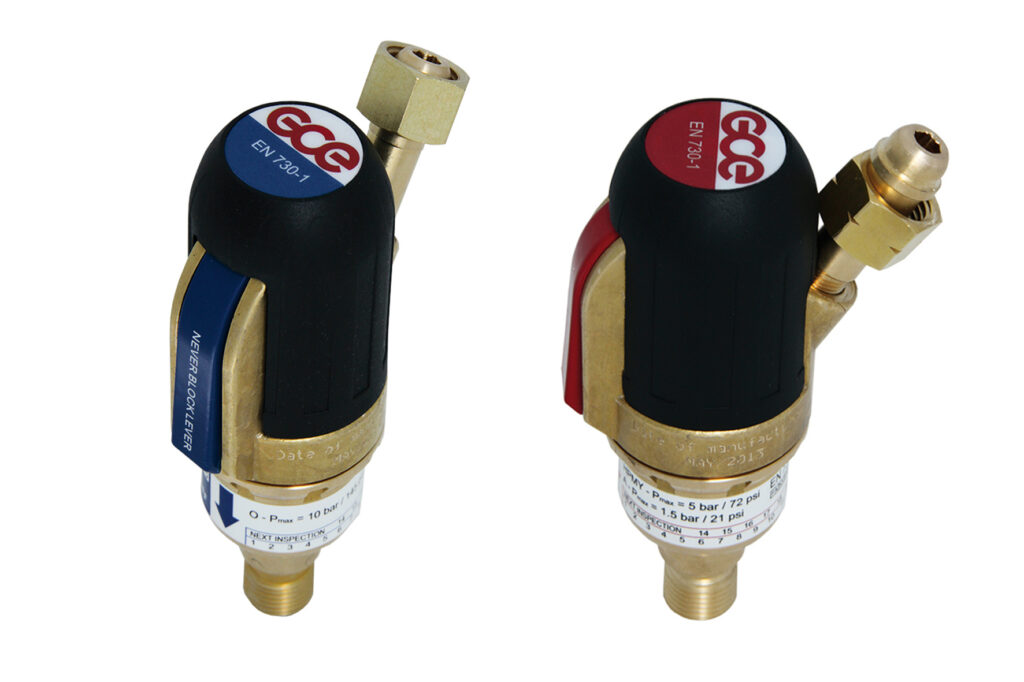

SAFE-GUARD-5 / 5 FUNCTION FLASHBACK ARRESTOR
The latest innovation from GCE the SAFE-GUARD-5 offers the maximum level of protection required by EN730-1 to prevent dangerous flashbacks from reaching the regulator and cylinder supply sources.
FEATURES
There are so many conditions that can cause a flashback, the fitting a flashback arrestor is commonsense. This unit offers the highest level of safety.
- Maximum number of safety features defined by EN730-1
- High visibility trip/reset lever coupled with quick acting reset even when pressurised
- Angled inlet to minimise hose damage
- 100% production flame tested for Flashback resistance
- Inspection dates can be marked on product for easy reference
FUNCTIONS
- Flame arresting element FA
- Non return valve NV
- Pressure sensitive cut off valve PV
- Temperature sensitive cut off valve TV
- Reset mechanism to clearly advise unit activation RM
TECHNICAL DATA
Right Hand | |
| Oxygen: | 10 bar |
| Left Hand | |
| Acetylene: | 1,5 bar |
| Hydrogen: | 5 bar |
| Propane: | 5 bar |
| Methane: | 5 bar |
| Natural Gas: | 5 bar |
| MPS: | 5 bar |
| MAPP: | 5 bar |
| Art. Nr. | Gas | Working pressure | Inlet connection | Outlet connection |
| 0764456 | Fuel | 1,5 bar (A) 5 bar (M) 5 bar (P) | G3/8” LH F | G3/8” LH M |
| 0764461 | Fuel | 1,5 bar (A) 5 bar (M) 5 bar (P) | 9/16” UNF LH F | 9/16” UNF LH M |
| 0764464 | Fuel | 1,5 bar (A) 5 bar (M) 5 bar (P) | M16×1,5 LH F | M16×1,5 LH M |
| Art. Nr. | Gas | Working pressure | Inlet connection | Outlet connection |
| 0764457 | Oxygen | 10 bar | G3/8” F | G3/8” M |
| 0764458 | Oxygen | 10 bar | G1/4” F | G1/4” M |
| 0764462 | Oxygen | 10 bar | 9/16” UNF F | 9/16” UNF M |
| 0764463 | Oxygen | 10 bar | M16×1,5 F | M16×1,5 M |

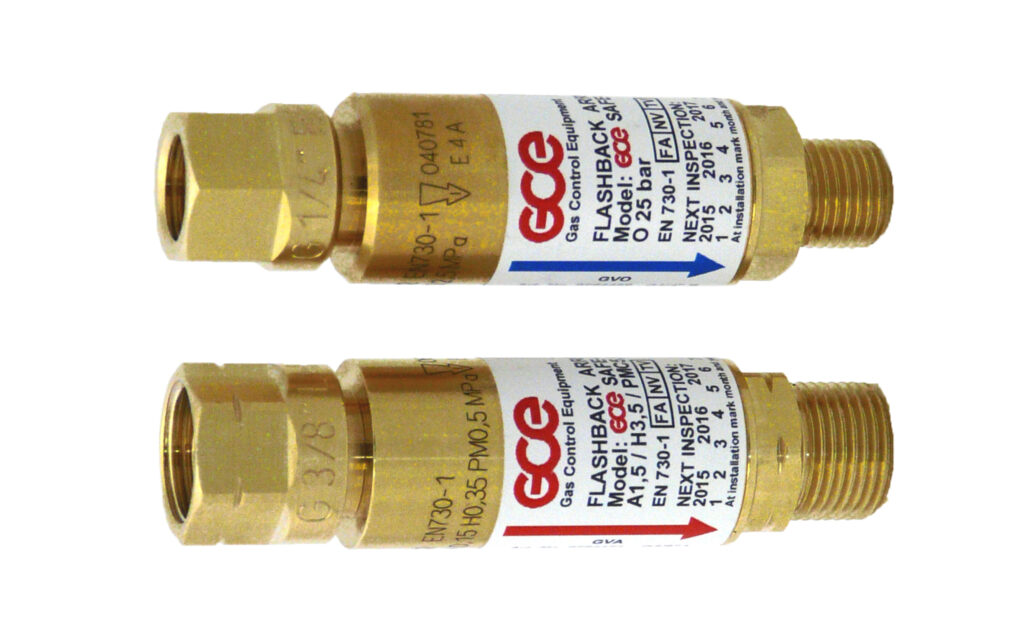

SAFE-GUARD-3 / FR34 - 3 FUNCTION FLASHBACK ARRESTOR
The new SAFE-GUARD-3 for regulator mounting, available from July 2014, contains a host of new upgrades to performance, filtration, Instructions, and product marking. Complies fully with EN730.
FUNCTIONS
- FA Sintered flame arresting element
- NV Non return valve to prevent reverse flow of gases
- TV Thermal trip device, activated by heat to permanently cut off the gas supply
| Art. Nr. | Gas | Working pressure | Inlet connection | Outlet connection |
| 0764469 | O | 25 bar | G1/4″ F | G1/4″ M |
| 0764470 | O | 15 bar | G3/8″ F | G3/8″ M |
| 0764472 | O | 15 bar | M16×1,5 F | M16×1,5 M |
| 0764474 | O | 25 bar | 9/16″ UNF F | 9/16″ UNF M |
| 0764471 | A H C P M | 1,5 3,5 bar 3,5 bar 5 bar 5 bar | G3/8″LH F | G3/8″LH M |
| 0764473 | A H C P M | 1,5 bar 3,5 bar 3,5 bar 5 bar 5 bar | M16×1,5LH F | M16×1,5LH M |
| 0764475 | A H C P M | 1,5 bar 3,5 bar 3,5 bar 5 bar 5 bar | 9/16″UNF LH F | 9/16″UNF LHM |
SAFE-GUARD-2 / MV93 - 2 FUNCTION FLASHBACK ARRESTORS
The GCE SAFE-GUARD-2 / MV93 range of basic flashback arrestors are available for connecting to regulators, hose lines and to torches.
Manufactured to EN730-1 and designed to prevent flashbacks in oxy/fuel systems, they includes the safety features of sintered flame arresting element (FA) to quench flashback plus non return valve (NV) to prevent reverse flow of gases.
FOUR MODELS ARE AVAILABLE FOR CONNECTION TO:
- Regulator (model RP)
- Hose line to Hose line (model TT)
- Torch to hose line (model TF)
- Torch threaded inlet/outlet (model FF)
CONNECT TO TORCH (FF) – THREAD/THREAD
| Art. Nr. | Gas | Pressure (bar) | Inlet connection | Outlet connection |
| 81910 | Oxygen | 10 | G1/4″ | G 1/4″ |
| 81900 | Oxygen | 10 | G3/8″ | G 3/8″ |
| 0762495 | Oxygen | 10 | 9/16″ | 9/16″ |
| 81960 | Fuel | 1,5 (A) 5 (P) | G1/4″LH | G1/4″LH |
| 81950 | Fuel | 1,5 (A) 5 (P) | G3/8″LH | G3/8″LH |
| 0762496 | Fuel | 1,5 (A) 5 (P) | 9/16″LH | 9/16″LH |

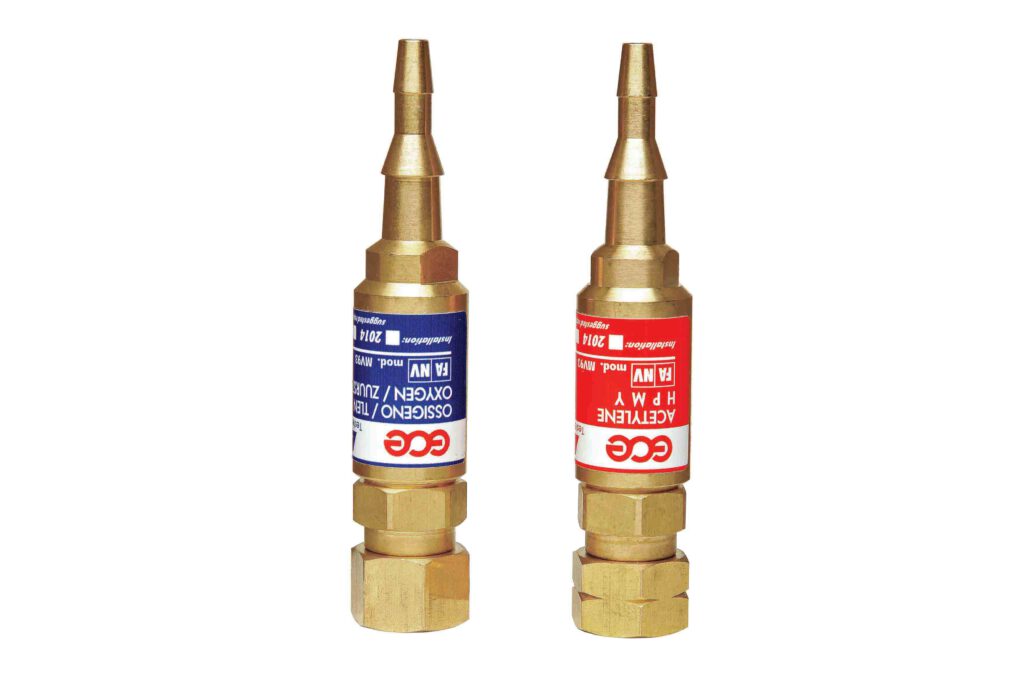

CONNECT TO TORCH (TF) – HOSE/THREAD
| Art. Nr. | Gas | Pressure (bar) | Inlet connection | Outlet connection |
| 80910 | Oxygen | 10 | 6.3/10 mm tube | G1/4″ |
| 80900 | Oxygen | 10 | 6.3/10 mm tube | G3/8″ |
| E0080900 | Oxygen | 10 | 6.3/10 mm tube | M16×1,5 |
| 80960 | Fuel | 1,5 (A) 5 (P) | 6.3/10 mm tube | G 1/4″LH |
| 80950 | Fuel | 1,5 (A) 5 (P) | 6.3/10 mm tube | G 3/8″LH |
| E0080950 | Fuel | 1,5 (A) 5 (P) | 6.3/10 mm tube | M16×1,5 LH |
CONNECT TO REGULATOR (RP) – THREAD/THREAD
| Art. Nr. | Gas | Pressure (bar) | Inlet connection | Outlet connection |
| H0081810 | Oxygen | 10 | G1/4″ | G 1/4″ |
| F28410006 | Oxygen | 10 | G3/8″ | G3/8″ |
| 0762497 | Oxygen | 10 | 9/16″ | 9/16″ |
| 80205∗ | Oxygen | 10 | G3/8″ | G3/8″ |
| 0764451 | Oxygen | 10 | 9/16″ | 9/16″ |
| H0081850 | Fuel | 1,5 (A) 5 (P) | G3/8″LH | G3/8″LH |
| 0762498 | Fuel | 1,5 (A) 5 (P) | 9/16″LH | 9/16″LH |
| 80255∗ | Fuel | 1,5 (A) 5 (P) | G3/8″LH | G3/8″LH |
| 0764452 | Fuel | 1,5 (A) 5 (P) | 9/16″LH | 9/16″LH |
∗ Special design
CONNECT TO REGULATOR (RP) – THREAD/HOSE
| Art. Nr. | Gas | Pressure (bar) | Inlet connection | Outlet connection |
| E0080500 | Oxygen | 10 | M16×1,5 | 6.3/10 mm tube |
| E0080550 | Fuel | 1,5 (A) 5 (P) | M16×1,5 | 6.3/10 mm tube |
CONNECT TO HOSE (TT) – HOSE/HOSE
| Art. Nr. | Gas | Pressure (bar) | Inlet connection | Outlet connection |
| 80700 | Oxygen | 10 | 6.3/10 mm tube | 6.3/10 mm tube |
| 80750 | Fuel | 1,5 (A) 5 (P) | 6.3/10 mm tube | 6.3/10 mm tube |
CONNECT TO TORCH (FF) – THREAD/THREAD
| Art. Nr. | Gas | Pressure (bar) | Inlet connection | Outlet connection |
| 0762216 | Fuel | 1,5 (A) 5 (P) | G3/8″RH | G3/8″RH |
| 0762217 | Fuel | 1,5 (A) 5 (P) | G3/8″LH | G3/8″LH |
| 0762220 | Oxygen | 10 | G3/8″RH | G3/8″RH |
| 0764427 | Fuel | 1,5 (A) 5 (P) | G1/4″LH | G1/4″LH |
| 0762215 | Oxygen | 10 | G1/4″RH | G1/4″RH |
| 0762265 SET SP20 | – | – | – | – |

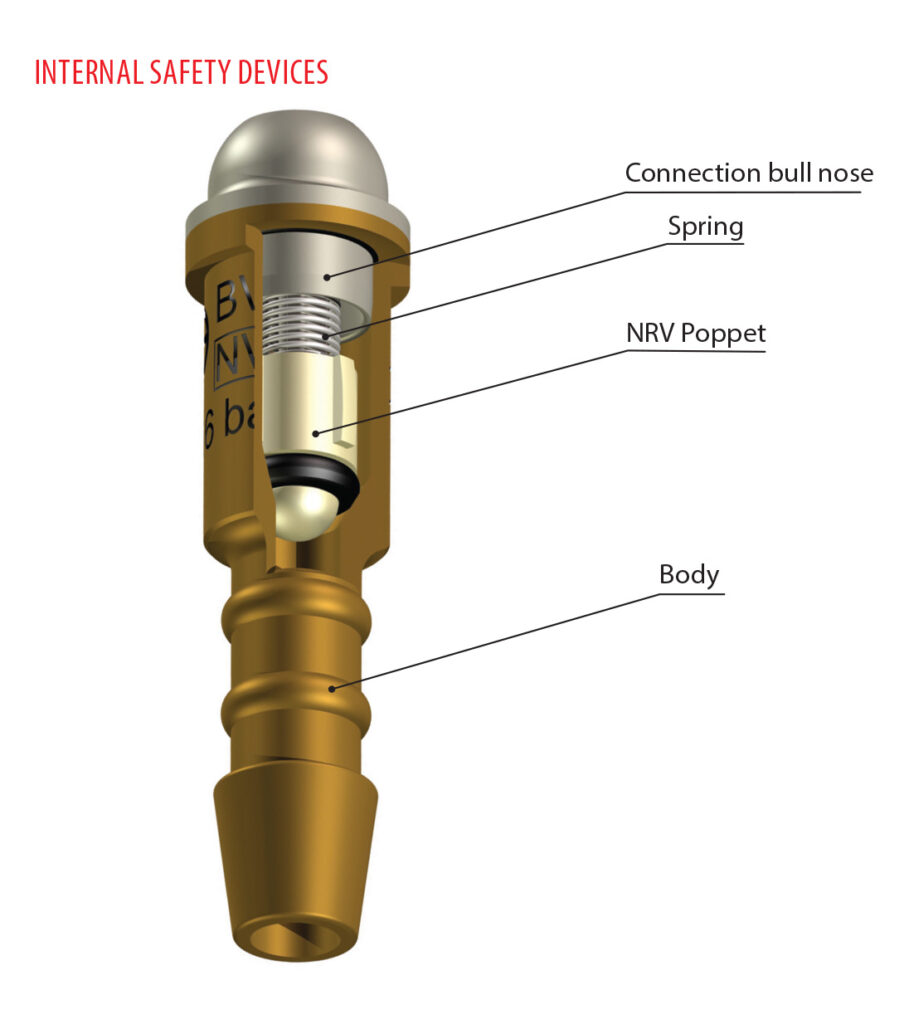

SAFE-GUARD-1 / BV12
The GCE SAFE GUARD 1 / BV 12 is a non-return valve that prevents reverse ow of gases back into a hose. They are manufactured to our own approved design and the unique method of assembly eliminates the use of soldered or bonded joints. They are suitable to be used with Oxygen, Acetylene, Propane or Natural Gas and operate e ectively on either nozzle mix or injector type torches.
Max service pressure is 16 bar within a temperature range of -30°C to +50°C. The design is compact, not bigger than an ordinary hose nipple. Still the pressure losses involved are insigni cant and the set working pressure therefore stay unchanged. GCE SAFE GUARD 1 / BV 12 is manufactured in accordance with European standard EN730-2.
GCE recommends that the GCE SAFE GUARD 1 / BV 12 always are mounted on the torch inlet for both oxygen and fuel gas. Furthermore GCE recommend to check the function of the nonreturnvalve as a minimum every six month.
GCE SAFE GUARD 1 / BV 12 RANGE INCLUDING NUT
| Art. Nr. | Gas | Fitting | Hose (mm) | Quantity |
| 9402370 | Fuel | 9/16″UNF LH | 6.3 | 1 |
| 871132 | Fuel | G1/4″LH | 6.3 | 5 |
| 871122 | Fuel | G3/8″LH | 6.3 | 1 |
| 871112 | Fuel | G3/8″LH | 8 | 1 |
| 871102 | Fuel | G3/8″LH | 10 | 1 |
| 0764437 | Fuel | M16×1,5 LH | 6.3 | 1 |
| 0764439 | Fuel | M16×1,5 LH | 8 | 1 |
| 9402990 | Oxygen | 9/16″UNF | 6.3 | 1 |
| 871131 | Oxygen | G1/4″ | 6.3 | 5 |
| 871121 | Oxygen | G3/8″ | 6.3 | 1 |
| 871111 | Oxygen | G3/8″ | 8 | 1 |
| 871101 | Oxygen | G3/8″ | 10 | 1 |
| 0764436 | Oxygen | M16×1,5 | 6.3 | 1 |
| 0764438 | Oxygen | M16×1,5 | 8 | 1 |
BV 12 WITHOUT NUT
| Art. Nr. | Fitting | Hose (mm) | Quantity |
| 0863531 | G1/4″; 9/16″UNF | 6.3 | 1 |
| 0863532 | G3/8″; M16×1,5 | 6.3 | 1 |
| 0863533 | G3/8″; M16×1,5 | 8 | 1 |
| 0863534 | G3/8″; M16×1,5 | 10 | 1 |
| 0763568 | G1/4″ and G3/8″ set of two | 6.3/8 twin | 1 (2pcs) |
BV 12 THREADED BOTH ENDS
| Art. Nr. | Connections | Gas | Quantity |
| 0863561 | G1/4″M – G1/4″F | Oxygen | 1 |
| 0863562 | G1/4″LH M – G1/4″LH F | Fuel | 1 |
| 0863563 | G3/8″M – G3/8″F | Oxygen | 1 |
| 0863564 | G3/8″LH M – G3/8″LH F | Fuel | 1 |
| 0863565 | 9/16″UNF M – 9/16″UNF F | Oxygen | 1 |
| 0863566 | 9/16″UNF LH M – 9/16″UNF LH F | Fuel | 1 |
* note BV12 without nut 5mm versions make obsolete (0863530 and 0863539)

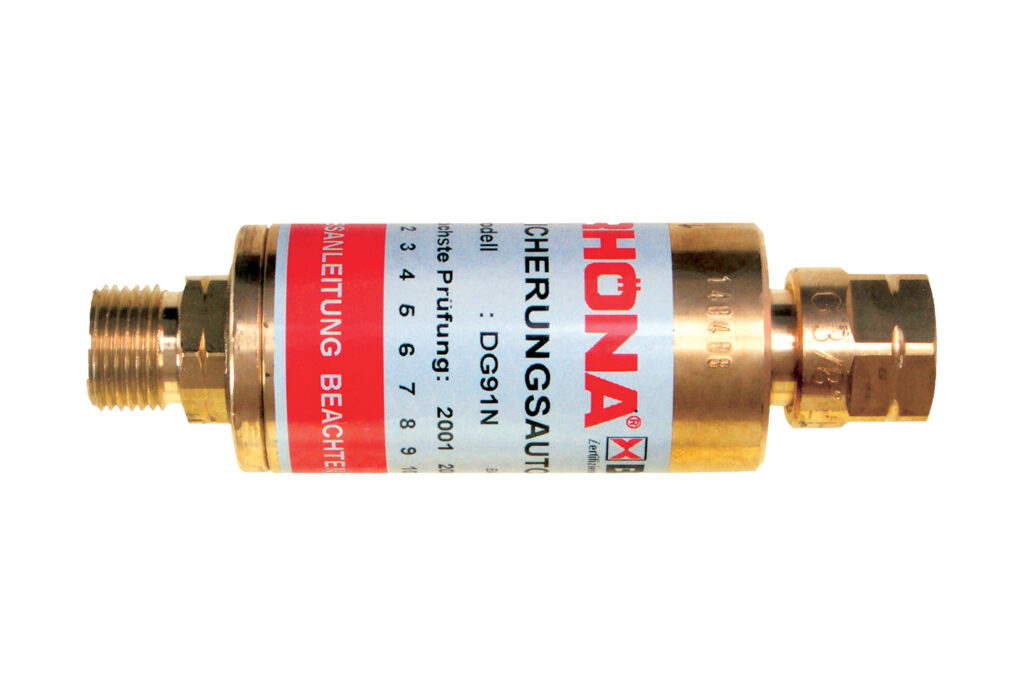

SAFE-GUARD-3 HF / GVA 90 - 3 FUNCTION FLASHBACK ARRESTOR
Part Number: 14008121, 14008130Group Number: 2861
The new Safe-guard 3 for regulator mounting has been redesigned incorporating an improved sintered filter and thermal trip device. Complies with EN730.
- FA Sintered flame arresting element
- NV Non return valve to prevent reverse flow of gases
- TV Thermal trip device, activated by heat to permanently cut off the gas supply
| Art. Nr. | Gas | Working pressure | Inlet connection | Outlet connection |
| 14008121 | A | 1,5 bar | G 3/8“ LH | G 3/8“ LH |
| 14008130 | A P M | 1,5 bar 5 bar 5 bar | G 1/2“ LH | G 1/2“ LH |
