FOAMS

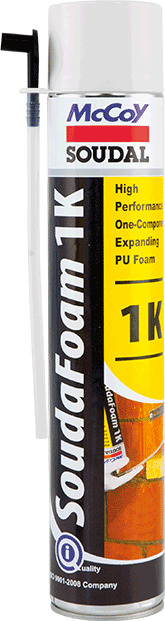

Soudafoam 1K
High Performance One – Component Expanding PU Foam
Description :
Soudafoam 1K is a one-component, selfexpanding, ready to use polyurethane foam with CFC-free propellants, which are completely harmless to the ozone layer.
Applications :
• Installation of window and door frames
• Filling of cavities
• Sealing of all openings in roof constructions
• Creation of a soundproof screen
• Mounting and sealing of window and door frames
• Connecting of insulation materials and roof constructions
• Application of soundproofing layers on motors
• Improving thermal insulation in cooling systems
| Base | Polyurethane |
| Consistency | Stable foam, thixotopic |
| Curing system | Moisture-cure, thixotropic |
| Skin Formation (FEICA TM 1014) | 8 min |
| Cutting Time (FEICA TM 1005) | 28 min |
| Density | Ca. 25 kg/m³ |
| Sound insulation (EN ISO 717-1) | 58 dB |
| Insulation factor (DIN52612) | 35 mW/m.K |
| Curing time | 90 min for a 30 mm bead |
| Box Yield (FEICA TM 1003) | 300 ml yields ca. 12 l of foam 500 ml yields ca. 20 l of foam 600 ml yields ca. 24 l of foam 750 ml yields ca. 29 l of foam |
| Joint Yield (FEICA TM 1002) | 750 ml yields ca. 21 m of foam |
| Shrinkage (FEICA TM 1004) | < 2% |
| Post-expansion (FEICA TM 1004) | < 2% |
| Cellular Structure | Ca. 70 % closed cells |
| Fire rating (DIN4102) | B3 |
| Insulation factor (DIN52612) | 35 mW/m.K |
| Compressive strength (FEICA TM 1011) | Ca. 2,0 N/cm² |
| Shear strength (FEICA TM 1012) | Ca. 5,0 N/cm² |
| Water absorption | 1 % volume |
| Temperature resistance | -40 °C till +90 °C (cured) |
Characteristics:
• Excellent adhesion on most substrates (except Teflon, PE and PP)
• High thermal and acoustical insulation
• Very good filling capacities
• excellent stability (no shrink or post expansion)
• Excellent mounting capacities
| Color: | Packaging: | Product Shade Card: |
| Champagne | 300 ml and 750 ml aerosol cans | |
| Click here to download: TDS | Foams Usage Calculator | ||
Product Features :
• Soudafoam 1K PU Foam is a one-component, self expanding, ready-to-use polyurethane foam with
CFC-free propellants which are completely harmless to the ozone layer.
CFC-free propellants which are completely harmless to the ozone layer.
• Soudafoam 1K PU Foam used for Installation of window and door frames.
• Soudafoam 1K PU Foam used for Filling of cavities.
• Soudafoam 1K PU Foam used for sealing of all openings in roof constructions.
• Soudafoam 1K PU Foam used for creation of a soundproof screen.
• Soudafoam 1K PU Foam used for Mounting and sealing of window and door frames.
• Soudafoam 1K PU Foam creates soundproofing layers.
• Soudafoam 1K PU Foam used in Installation of air conditioners.
• Soudafoam 1K PU Foam has excellent adhesion on most substrates (except Teflon, PE and PP).
• Soudafoam 1K PU Foam has high thermal and acoustical insulation.
• Soudafoam 1K PU Foam has very good filling capacities.
• Soudafoam 1K PU Foam is available in Champagne color.

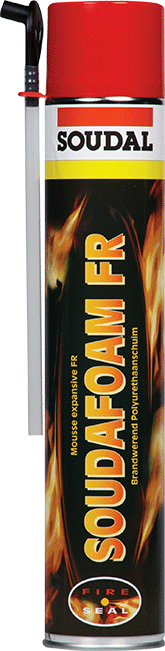

Soudafoam FR
Fire Retardant Single Component, Self Expanding PU Foam
Description :
Soudafoam FR is a single-component, self-expanding, ready to use polyurethane foam which has a fire rating of up to 120 minutes in certain configurations according EN 1366-4.
Applications :
• Installation of fireproof doors and windows.
• Fire and smoke retardant sealant between walls, floors and ceilings.
• Sealing of all openings in roof constructions.
• Apply of a sound absorbing layer.
| Base | Polyurethane |
| Consistency | Stable foam, thixotopic |
| Curing system | Moisture-cure, thixotropic |
| Skin Formation | 8 min |
| Density | Ca. 25 kg/m³ |
| Temperature resistance | -40°C till +90°C (cured) |
| Curing time | 2 hours for a 30mm bead |
| Drying time (20°C and 60% R.H.) | Dust-proof after 20 -25 min |
| Box Yield (TM 1003-2010) | 750ml yields 30 l (FEICA TM 1003-2010) |
| Shrinkage | <5%( FEICA TM 1004-2010) |
| Post-expansion | <1% (FEICA TM 1004-2010) |
| Cellular Structure | Ca. 70 to 80% closed cells |
| Resistance to fire (EN 1366) | 110 min. |
Characteristics :
• Fire resistant up to 4 hours.
• Sealant for preventing the passage of smoke and gas.
• Does not contain Good adhesion on all surfaces (except PE, PP and PTFE).
• High insulation value, thermal and acoustic.
• Very good bonding properties.
• Excellent stability (no shrinkage or post expansion).
| Color: | Packaging: | Product Shade Card: |
| Light Red | 750ml Aerosol Can | |
| Click here to download: TDS | Foams Usage Calculator | ||
Product Features :
• Soudafoam FR is a fire retardant single-component, self-expanding PU foam.
• Soudafoam FR high insulation value, thermal and acoustic.
• Soudafoam FR has excellent stability (no shrinkage or post expansion).
• Soudafoam FR does not contain Good adhesion on all surfaces (except PE, PP and PTFE).
• Soudafoam FR fire resistant up to 4 hours.
• Soudafoam FR used in installation of fireproof doors and windows.
Soudafoam Gun
Fire Retardant One – Component Expanding Gun Foam
Description :
Soudafoam FR Gun is a one-component, selfexpanding, ready to use polyurethane foam, where the canister is provided with a thread so it can be used on a gun. Soudafoam FR Gun is a PU-foam with fire retardant characteristics according to the European standard EN 1366-4.
Applications :
• Fire and smoke retardant sealant between walls, floors and ceilings.
• Installation of fireproof doors and windows.
• Sealing of all openings in roof constructions.
| Base | Polyurethane |
| Consistency | Stable foam, thixotopic |
| Curing system | Moisture-cure |
| Skin Formation | 8 min |
| Cutting Time (FEICA TM 1005) | 55 min |
| Density | Ca. 25 kg/m³ |
| Sound insulation (EN ISO 717-1) | 62 dB |
| Box Yield (FEICA TM 1003) | 750 ml yields ca. 43 l of foam |
| Joint Yield (FEICA TM 1002) | 750 ml yields ca. 24 m of foam |
| Shrinkage (FEICA TM 1004) | < 10 % |
| Post-expansion (FEICA TM 1004) | < 1 % |
| Cellular Structure | Ca. 70 % closed cells |
| Temperature resistance | -40 °C till +90 °C (cured) |
Characteristics :
• Sealant for preventing the passage of smoke and gas.
• Fire resistant in a joint (EN 1366-4).
• High filling capacity.
• Good adhesion on all surfaces (except PE, PP and PTFE).
• High insulation value, thermal and acoustic.
• Very good bonding properties.
• CE marked (ETAG 026).
| Color: | Packaging: | Product Shade Card: |
| Pink | Aerosol can 750ml | |
| Click here to download: TDS | Foams Usage Calculator | ||
Product Features :
• Soudafoam FR Gun is a one-component, self expanding, ready-to-use polyurethane foam.
• Soudafoam FR Gun used for fire retardant installation of window and door frames.
• Soudafoam FR Gun PU Foam has excellent adhesion on most substrates (except PE, PP and PTFE).
Soudafoam 2K
DESCRIPTION
Soudafoam 2K is a two-component, selfexpanding, ready-to-use polyurethane foam. Due the high strength is it typically foam for mounting.
CHARACTERISTICS
– Professional quality
– Fast curing, not dependant on atmospheric moisture
– Excellent adhesion on most materials (except Teflon, PE and PP)
– High thermal and acoustical isolation
– Excellent fixing capacities
– Very high adhesive strength
– High form stability (no shrinking or postexpansion)
– Can be trimmed after 30 minutes (20°C)
– Fast curing, not dependant on atmospheric moisture
– Excellent adhesion on most materials (except Teflon, PE and PP)
– High thermal and acoustical isolation
– Excellent fixing capacities
– Very high adhesive strength
– High form stability (no shrinking or postexpansion)
– Can be trimmed after 30 minutes (20°C)
APPLICATIONS
– Installing of window- and doorframes
– Filling of cavities
– Sealing of all openings in roof constructions
– Creation of a soundproof screen
– Application of a soundproofing layer on motors
– Improving insulation in cooling systems
– Filling of cavities
– Sealing of all openings in roof constructions
– Creation of a soundproof screen
– Application of a soundproofing layer on motors
– Improving insulation in cooling systems
DIRECTIONS FOR USE
Can temperature should bebetween +10°C and +25°C. surfaces have to be dust and grease free.
Turn lower disk 5 times to the right; the B-component is now released. Shake the can at least 20 times with the valve pointed downwards.
Apply foam applicator onto the valve.
Extrude the foam with the valve pointed downwards.
The extruded foam must be uniformly light green.
If necessary, repeat shaking.
Fill the joint for 50% as the foam will expand.
Empty the can in 5 minutes, after this period the foam will cure inside the can. Repeat shaking regularly during application. If you have to work in layers repeat moistening after each layer. Fresh foam can be removed using Soudal Foamcleaner or acetone. Cured foam can only be removed mechanically.
Working temperature 5°C to 35°C. (20°C-25°C recommended).
Turn lower disk 5 times to the right; the B-component is now released. Shake the can at least 20 times with the valve pointed downwards.
Apply foam applicator onto the valve.
Extrude the foam with the valve pointed downwards.
The extruded foam must be uniformly light green.
If necessary, repeat shaking.
Fill the joint for 50% as the foam will expand.
Empty the can in 5 minutes, after this period the foam will cure inside the can. Repeat shaking regularly during application. If you have to work in layers repeat moistening after each layer. Fresh foam can be removed using Soudal Foamcleaner or acetone. Cured foam can only be removed mechanically.
Working temperature 5°C to 35°C. (20°C-25°C recommended).
REMARKS
– Once the 2 components are mixed, empty the can completely within 5
minutes
– Always moisten surfaces in order to improve curing and cellular
structure
– Cured PU-foam must be protected from UV-radiation by painting or
applying a top layer of sealants (silicone, MS Polymer, PU and
acrylic)
minutes
– Always moisten surfaces in order to improve curing and cellular
structure
– Cured PU-foam must be protected from UV-radiation by painting or
applying a top layer of sealants (silicone, MS Polymer, PU and
acrylic)
