MACHINE CUTTING
GCE FIT+® (INJECTOR TECHNOLOGY)
INNOVATIVE TOOL – FREE SOLUTION
GCE FIT+® is unique system for oxy-fuel machine cutting technology. The long-term partnership with the customers resulted in the product concept creation. This product line is based on the wide experience with cutting application, one of the traditional fields of GCE activities. The main philosophy of GCE FIT+® is to make cutting process safe, efficient and operator friendly.
Torch is suitable for use with cutting nozzle types (High speed ASF, rapid cutting ARC) for acetylene and (High speed PSF, rapid cutting PRC) for propane, natural gas and mixed fuel gases.
- High productivity of oxygen machine cutting process due to high-speed cutting nozzles
- Safe operations ensured by integrated COOLEX® and axial injector with application of RMS (Resonator Mixing System) in acetylene variants
- Working efficiency with minimized nozzles exchange time
- Easy handling for machine operators because of Tool-Free nozzles changing system
- Nozzles fixation done manually by special bayonet system, without any wrench
- One type of heating nozzle for all fuel gases
- Extended lifetime of heating nozzle
- Provided in accordance with ISO 5172
APPLICATION FIELDS
- Oxygen cutting of straight and shape cuts in accordance with ISO 9013
- Oxygen cutting 3 – 300 mm
- Hole piercing up to 150 mm
- Applications with different fuel gases
- Prepared for all cutting machines

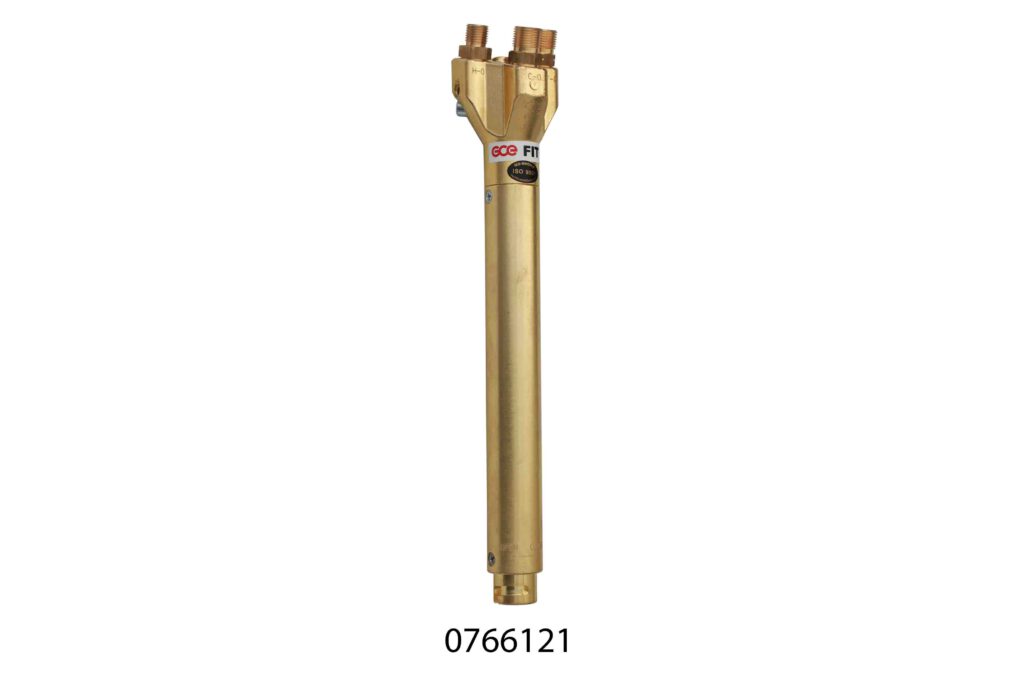

| Art. Nr. | Length / diameter* | Fuel gas | Connections |
| 0766121 | 220 / 32 | Acetylen | G3/8”, G3/8”LH, G1/4” |
| 0766164 | 320 / 32 | Acetylen | G3/8”, G3/8”LH, G1/4” |
| 0766223 | 110 / 32 | Acetylen | G3/8”, G3/8”LH, G1/4” |
| 0766122 | 220 / 32 | PMY | G3/8”, G3/8”LH, G1/4” |
| 0766165 | 320 / 32 | PMY | G3/8”, G3/8”LH, G1/4” |
| 0766224 | 110 / 32 | PMY | G3/8”, G3/8”LH, G1/4” |
*Other torch variants on request
ACCESSORIES
| Item No. | Description |
| 100383 | CSC 500 Height Sensor |
| 100926 | External Ignition System Propane |
| 100925 | External Ignition System Acetylene |
FIT™ / JETSTREAM (INJECTOR TECHNOLOGY)
The torches are designed for fixing of the GCE nozzles with original flat nozzle seat: High speed MA133, MP133 and rapid cutting JETEX and PROPEX.
- Safe operations ensured by integrated COOLEX® and axial injector with application of RMS (Resonator Mixing System) in acetylene variants
- High productivity of oxygen machine cutting process due to high-speed cutting nozzles
- Nozzles fixation with original flat seat system
- Unique solution of Rapid cutting with oxygen curtain nozzle
- Provided in accordance with ISO 5172
APPLICATION FIELDS
- Oxygen cutting of straight and shape cuts in accordance with ISO 9013
- Oxygen cutting 3 – 300 mm
- Hole piercing up to 150 mm
- Applications with different fuel gases
- Prepared for all cutting machines
COOLEX® inside:
Unique cooling system. Stabile and safe brass injector is placed in the massive torch body. Aluminium cooling heat exchanger downstream the injector completes cooling function of the FIT™/JETSTREAM. Heat is transported away from the injector which protects the torch against backfire. These features guarantee high process security, operation safety and long equipment life-time.

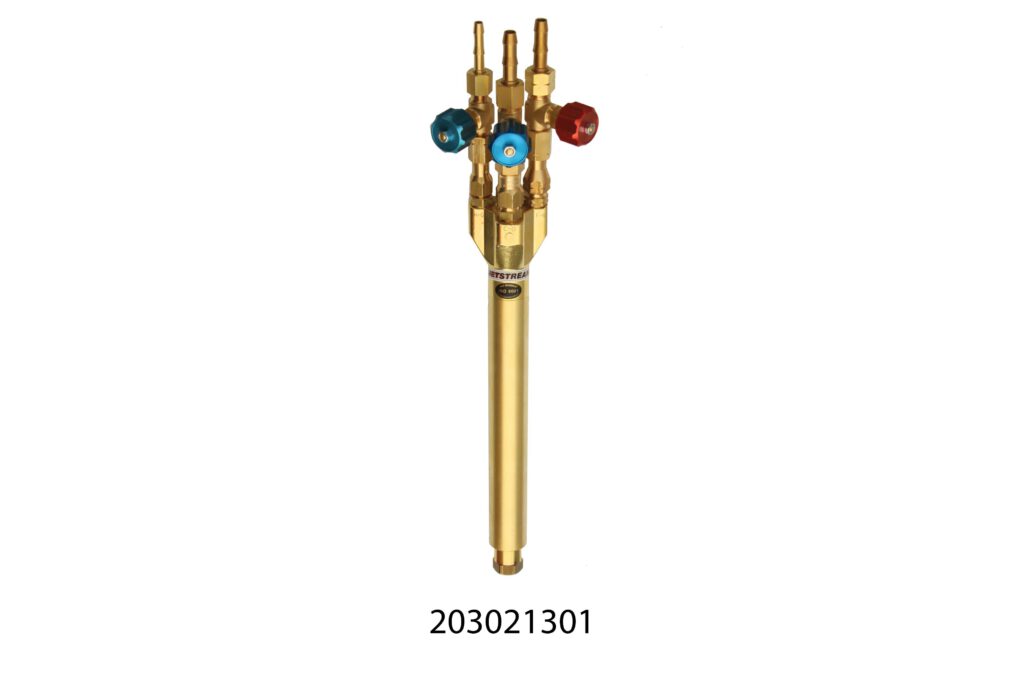

TORCH TYPE JETSTREAM
| Art. Nr. | Length/diam. | Gas | Connection | Including |
| 203021311 | 220/32 | A | 2xUNF 9/16”, 1xUNF 9/16”LH | BV12 + hose nipple 3×6,3 + valves |
| 203021315 | 400/32 | A | 400/32 A 2xUNF 9/16”, 1xUNF 9/16”LH | BV12 + hose nipple 3×6,3 + valves |
| 203021301 | 220/32 | A | A G3/8”, G3/8”LH, G1/4” | BV12 + hose nipple 2×8, 1×6,3 + valves |
| 203021306 | 400/32 | A | A G3/8”, G3/8”LH, G1/4” | BV12 + hose nipple 2×8, 1×6,3 + valves |
| 203021313 | 220/32 | PM | 2xUNF 9/16”, 1xUNF 9/16”LH | BV12 + hose nipple 3×6,3 + valves |
| 203021317 | 400/32 | PM | 2xUNF 9/16”, 1xUNF 9/16”LH | BV12 + hose nipple 3×6,3 + valves |
| 203021304 | 220/32 | PM | G3/8”, G3/8”LH, G1/4” | BV12 + hose nipple 2×8, 1×6,3 + valves |
TORCH TYPE FIT™
| Art. Nr. | Length/diam. | Gas | Connection |
| 0766107 | 220/32 | A | G3/8“, G3/8“LH, G1/4“ |
| 0766123 | 400/32 | A | G3/8“, G3/8“LH, G1/4“ |
| 0766106 | 220/32 | A | G3/8“, G3/8“LH, G1/4“ |
| 0766124 | 400/32 | A | G3/8“, G3/8“LH, G1/4“ |
BIR+™ (INJECTOR TECHNOLOGY)
Torch is suitable for use with cutting nozzle types (Standard AC, high speed ASD, high performance AHD) for acetylene and (standard PUZ, high speed PSD, high performance PHD) for propane, natural gas and mixed fuel gases.
- Safe operations ensured by integrated COOLEX®
- High productivity of oxygen machine cutting process due to high-speed cutting nozzles
- Working efficiency with minimized nozzles exchange time
- Large range of cutting and heating nozzles for all fuel gases
- Long lifetime of the system
- Provided in accordance with ISO 5172
APPLICATION FIELDS
- Oxygen cutting of straight and shape cuts in accordance with ISO 9013
- Oxygen cutting 3 – 300 mm
- Hole piercing up to 150 mm
- Applications with different fuel gases
- Prepared for all cutting machines
COOLEX® inside:
Unique cooling system. Stabile and safe brass injector is placed in the massive torch body. Aluminium cooling heat exchanger downstream the injector completes cooling function of the BIR+™. Heat is transported away from the injector which protects the torch against backfire. These features guarantee high process security, operation safety and long equipment life-time.

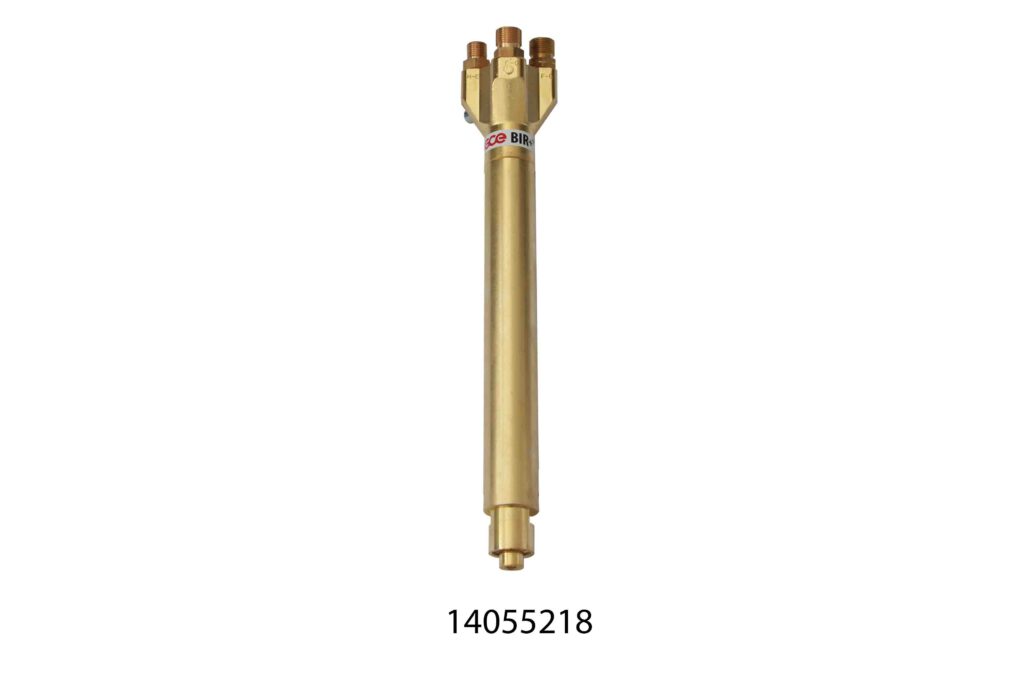

| Art. Nr. | Length / diameter | Gas | Connection |
| 14055239 | 110/32 | A | G3/8”, G3/8”LH, G1/4” |
| 14055218 | 220/32 | A | G3/8”, G3/8”LH, G1/4” |
| 14055241 | 320/32 | A | G3/8”, G3/8”LH, G1/4” |
| 14055222 | 220/30H | PM | G3/8”, G3/8”LH, G1/4” |
| 14055242 | 110/32 | PM | G3/8”, G3/8”LH, G1/4” |
| 14055219 | 220/32 | PM | G3/8”, G3/8”LH, G1/4” |
| 14055240 | 320/32 | PM | G3/8”, G3/8”LH, G1/4” |
Other lengths and diameters on customer request.
BGR™/X541 (NOZZLE MIXING TECHNOLOGY)
Cutting torch suitable for use with mixing nozzles for all fuel gases, high speed AMD, high performance Tritex for acetylene and standard K50, K70 PUZ for propane, natural gas and mixed fuel gases. The torch types BGR™ are defined for the adaptation of 30° nozzle cones (IC). The outer design is robust and reliable.
- Safe operations ensured by integrated COOLEX®
- High productivity of oxygen machine cutting process due to high-speed cutting nozzles
- One type of torch for all fuel gases
- Extended lifetime of cutting torch
- Provided in accordance with ISO 5172
APPLICATION FIELDS
- Oxygen cutting of straight and shape cuts in accordance with ISO 9013
- Oxygen cutting 3 – 300 mm
- Hole piercing up to 150 mm
- Applications with different fuel gases
- Prepared for all cutting machines
TORCH TYPE BGR
| Art. Nr. | Length/dia | Gas | Connection |
| 14056220 | 220/32 | APMY | G3/8”, G3/8”LH, G1/4” |
| 14056320* | 320/32 | APMY | G3/8”, G3/8”LH, G1/4” |
* Including rack m 1,25

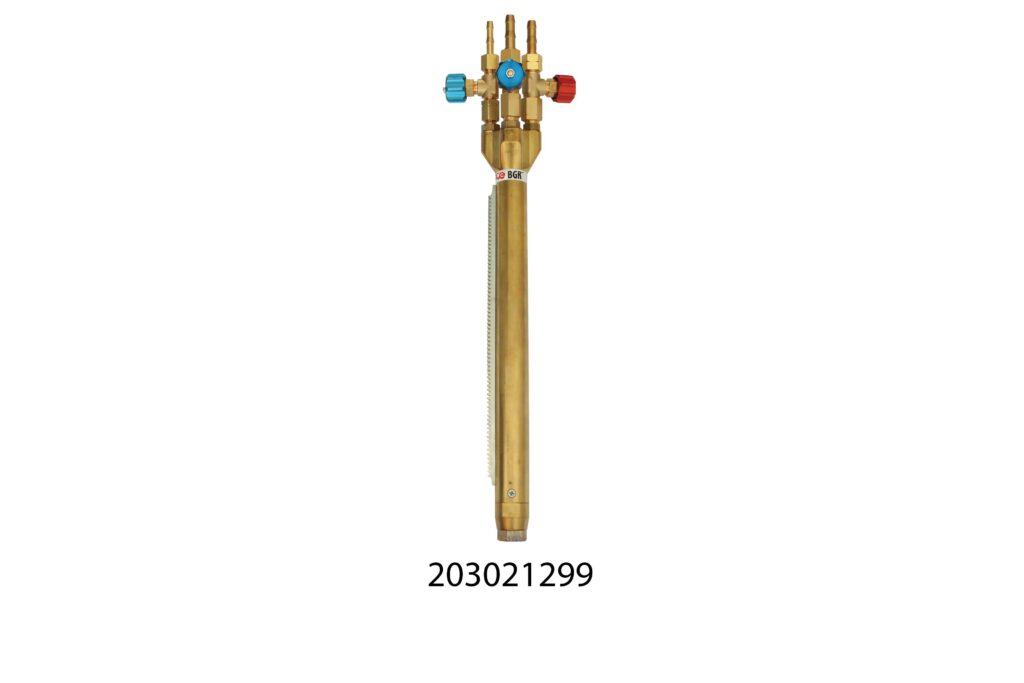

TORCH TYPE X541
| Art. Nr. | Length/dia | Gas | Connection | Hose nipple |
| 203021310 | 150/32 | APMY | G3/8”, G3/8”LH, G1/4” | 2×8 and 1×6,3 |
| 203021298 | 220/32 | APMY | G3/8”, G3/8”LH, G1/4” | 2×8 and 1×6,3 |
| 203021299 | 320/32 | APMY | G3/8”, G3/8”LH, G1/4” | 2×8 and 1×6,3 |
Including non return valve BV12 + valves.
