SEALANTS

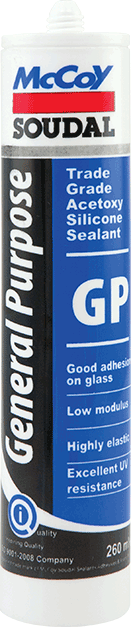

GP: General Purpose

Trade Grade Acetoxy Silicone Sealant

Description :
GP is a high-quality, elastic one-component joint sealant based on silicones

Applications :
• Building and construction joints
• Glazing and connection joints
• Elastic joints in coldstore and container applications
• Sealings in air conditioned systems
Curing SystemMoisture Cure
Skin formation (20°C / 65% R.H.)Ca 7 min.
Curing Rate (20°C / 65% R.H.)Ca 2 mm/24h
Hardness (DIN 53505)17 ± 5 Shore A
Specific Gravity (DIN 53479)Ca 0.95 g/ml
Temperature Resistance-60°C to +120°C
Elastical Recovery (ISO 7389)>80%
Maximum allowed Distortion20%
Elasticity Modulus 100% (DIN 53504)0.25 N/mm²
Maximum Tension (DIN 53504)1.25 N/mm²
Elongation at Break (DIN 53504)> 800%
Characteristics :

• Very easy application
• Permanent clear, UV-resistant
• Stays elastic after curing
• Very good adhesion on many materials
• General sealing for automotive applications

Color:Packaging:
White, Black, Transparent, Grey260ml

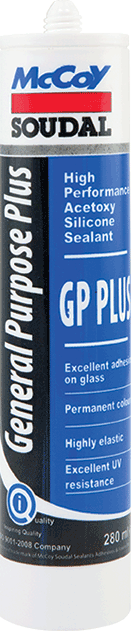

GP Plus: General Purpose Plus

High Performance Acetoxy Silicone Sealant

Description:
GP PLUS is a one part acetic cure silicone sealant. A strong, fast curing, low shrinkage product unaffected by rain, sunlight, snow etc. It is formulated with years of experience on a wide range of applications. It is a silicone sealant with high UV & water resistance.

Applications:
GP PLUS is most suitable for automotive applications, glass, aluminium, glass window frame joints, ceramics, vitreous surfaces, many plastics, paints, rubber, tiles, sanitary wares, fiber glass and most non-porous substrates.
Curing SystemMoisture Cure
Skin formation (20°C / 65% R.H.)Ca 7 min.
Curing Rate (20°C / 65% R.H.)Ca 2 mm/24h
Hardness (DIN 53505)20 ± 5 Shore A
Specific Gravity (DIN 53479)Ca 1.00 g/ml
Temperature Resistance-60°C to +150°C
Elastical Recovery (ISO 7389)> 90%
Maximum allowed Distortion25%
Elasticity Modulus 100% (DIN 53504)0.30 N/mm²
Maximum Tension (DIN 53504)1.40 N/mm²
Elongation at Break (DIN 53504)> 800%
Characteristics :

• Ready to use, highly elastic
• Excellent UV resistance
• Excellent sealing and bonding properties
• Suitable for both interior and exterior applications
• Low shrinkage

Color:Packaging:Product Shade Card:
White, Black, Transparent, Grey280ml

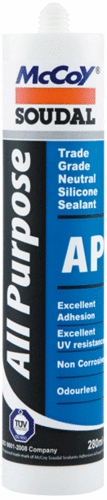

AP: All Purpose

Trade Grade Neutral Silicone Sealant Description:

AP is a high performance silicone sealant with outstanding sealing properties to porous & non – porous substrates.

Applications :

Buildingandconstructionjoints.Topsealingatglazingjobs.Sealingbetweentreatedwoodandglass.Sealing betweenPVCandglass.Automotive/BusGlass sealing, uPVC profiles, concrete, brick masonry, ACP, Aluminium&hardware applications.

Properties :

Curing SystemMoistureCure
Skin formation (20°C / 65% R.H .)Ca 10 min.
Curing Rate (20°C / 65%R.H.) Hardness(DIN 53505)Ca 1 to 2 mm/24h
Specific Gravity (DIN534 79)25±5 Shore A
TemperatureResistanceCa 1.18 g/ml
Elastical Recovery(DIN 7389)-60°Cto+120°c
MaximumallowedDistortion>80%
ElasticityModulus 100% (DIN 53504)25.00%
MaximumTension (DIN 53504)0.38N/mm2
Elongationat Break (DIN 53504)1.00N/mm2

Characteristics :

      • Stays elastic aftercuring

      • Non-sag,Pasteconsistency

      • Excellent adhesion to most common industrial and buildingmaterials

      • Solutiontoeliminate leakages in windscreens,tail lights and fixed glasspanels

      • Maintains a flexible seal and safe to use on most of the commonpaints

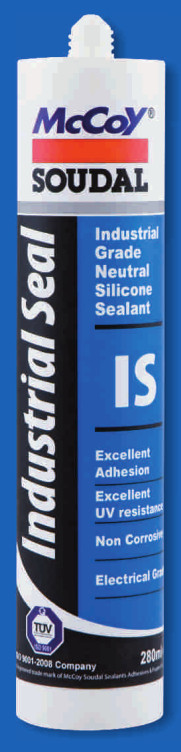

IS : Industrial Seal

Industrial Grade Neutral Silicone Sealant

Description :

IS is a high performance neutral cure silicone sealant with outstanding adhesive/sealing properties for most of the critical industrial applications.

Applications :

ISis the most suitable industrial grade silicone sealant. Sealing of lock seams, joints in ductwork,welds and fasteners in metal fabrication, dissimilar metalsand corrosion sensitive surfaceslikechromeandsteel.Building and construction joint s.Sealing between treated woodand glass.Sealing betweenPVCandglass.

Curing SystemMoisture Cure
Skin formation (20°C / 65% R.H .)Ca 10 min.
Curing Rate (20°C / 65%R.H.) Hardness(DIN 53505)Ca 1 to 2 mm/24h
(20°C/65%R.H.)Hardness(DIN 53505)25±5 Shore A
Specific Gravity (DIN534 79)Ca 1.18 g/ml
Temperature Resistance-60°C to+120°c
Elastical Recovery(DIN 7389)> 80%
Maximum allowed Distortion25.00%
Elasticity Modulus 100% (DIN 53504)0.38N
Maximum Tension (DIN 53504)1 mm2
Elongationat Break (DIN 53504)600%

Characteristics

  • One component RTV (RoomTemperatureVulcanizes)

  • Excellent UVresistance

  • Can be applied to overhead or verticaljoints

  • Does not crack, crumble or dry out in directsunlight

  • ·Bondsalmostallsurfaces:metals,paintedsurfaces,glasses, ceramics,mostplastics, non-oily woods, fibrous cement and concretesurfaces

Color

White, Black,Transparent, Grey

Packaging

280ml

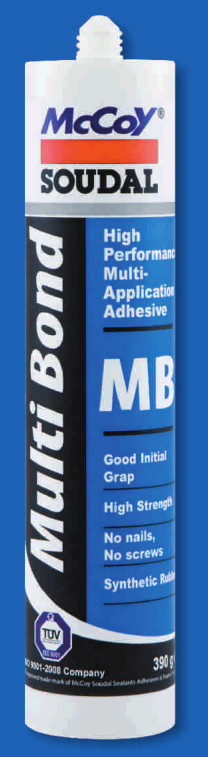

MB : Multi Bond

High Performance Multi-Application Adhesive Description

Multi Bond is ideal for bonding timber, most of the common construction materials and mirror s. It is asyntheticrubber based adhesive especially designed for mirror bonding and ACPbonding application inbuildings.

Applications

MultiBond is very suitableforbonding of mirror, skirting boards, cornices, concrete, brick, alu minium,metals, wood, tiles, ceramics, varnished or painted surfaces and many plasticsetc.

BaseSynthetic Rubber (SBR)
ConsistencyPaste
Curing SystemPhysical drying and crystallization
Specific Gravity (DIN 534 79)1.23 g/ml
Open Time*15 min.
Curing Time*20 min.(initial strength), 24-48 h
Temperature Resistance-20°C to +60°C (cured)

Color

Beige

Packaging

390 g

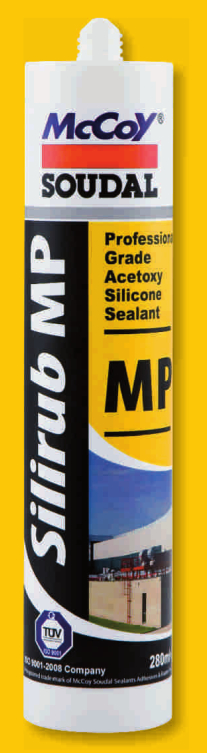

Silirub MP

Professional Grade Acetoxy Silicone Sealant Description

SilirubMPisaonepartaceticcuresiliconesealant.Astrong,fastcuring,multi-purposesealant,itisunaffectedby rain, sunlight, snow etc.It is formulated with McCoy Soudal’s years of experience on a widerangeof applications. Silirub MP has ahighUV and waterresistance.

Applications

SilirubMPis very much suitable for Automobiles,Buses,Construction work, Glass,House(DIY), Aluminiu m,Refrigeration,ACductsealing, non oily wood etc.

Curing SystemMoisture Cure
Skin formation (20°C / 65% R.H .)Ca 7 min.
Curing Rate (20°C / 65%R.H.)Ca 2 rmn/24h
Hardness(DIN 53505)20±5 Shore A
Specific Gravity (DIN534 79)Ca 1.00 g/ml
Temperature Resistance-60°C to+150°C
ElasticalRecovery(ISO 7389)>90%
Maximum allowed Distortion25.00%
Elasticity Modulus 100% (DIN 53504)0.30N/mm2
Maximum Tension (DIN 53504)1.40 N/mm2
Elongationat Break (DIN 53504)> 800%

Characteristics

• Excellentbonding on most of thesurfaces
• Colorstability
• Good UV resistance
• Easytooling and soft extrude ableproperties
• RTV-Room TemperatureVulcanization
• Non-sag
• Longshelflife

Colour

White, Black, Transparent, Grey

Packaging

280ml

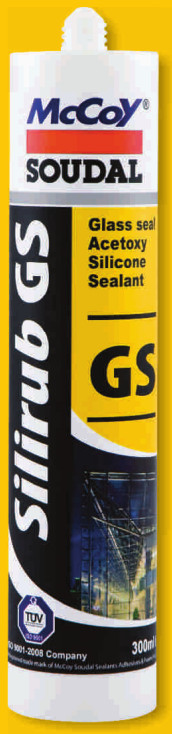

Silirub GS

Glass Seal 100% Acetoxy Silicone Sealant

Description

Silirub GS is one component, elastic high quality100%acetoxy silicone sealant.

Applications

Sealing of glasses, air-conditioning ducts, spider glazing, connection joints inGlass Facades,Aquarium, top sealingfor Glass toGlassat glazing job s.

Curing SystemMoisture Cure
Skin formation (20°C / 65% R.H .)Ca 7 min.
Curing Rate (20°C / 65%R.H.)Ca 2 mm/24h
Hardness(DIN 53505)25±5 Shore A
Specific Gravity (DIN534 79)Ca 1.03 g/ml
Temperature Resistance-60°C to+180°C
ElasticalRecovery(ISO 7389)>90%
Maximum allowed Distortion25.00%
Elasticity Modulus 100% (DIN 53504)0.40N/mm2
Maximum Tension (DIN 53504)1.50N/mm2
Elongationat Break (DIN 53504)>800%

Characteristics

▪ Specially designed for spider glazing applications in buildingindustries.
▪ Performbetter even if used for sealing inbutt joints of glass
▪ Excellent bonding on most of the common construction/buildingsubstrates
▪ One part – moisturecure
▪ Excellent UVresistance
▪ Fastcure

Color
Transparent, Black

Packaging
300ml

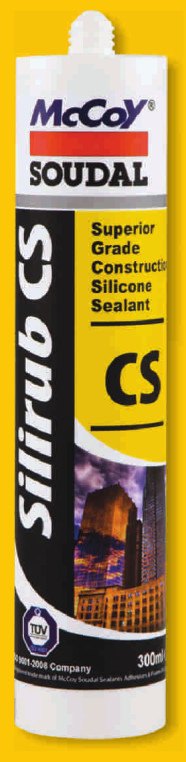

Silirub CS

Superior Grade Construction Silicone Sealant Description

Silirub CS is a high-quality neutral curelowmodulus silicone sealant with high elasticity which is based on alkox y technolog y.

Applications

  • All the usual building and construction joints

  • All glazing jobs

  • Expansion joints between different building materials

  • Perfectly suitable on polycarbonate joints

Curing SystemMoisture Cure
Skin formation (20°C / 65% R.H .)Ca 10-15 min.
Curing Rate (20°CI65%RH)Ca1.5mm/24h
Hardness (DIN 53505)20±5 ShoreA
Specific Gravity (DIN534 79)1.03 g/ml
Temperature Resistance-40°C to+120°c
Elastical Recovery (ISO 7389)>80%
Maximum allowed Distortion25.00%
Elasticity Modulus 100% (DIN 53504)0.35N/mm2
Maximum Tension (DIN 53504)1.60 N/mm2
Elongationat Break (DIN 53504)>600%

Characteristics

▪ Very easytoapply
▪ Permanentlycolorfast
▪ UV-resistant
▪ Stays fully elastic aftercuring
▪ Very good adhesion on most types ofmaterials
▪ Almost nosmell
▪ ShinyColors
▪ Hightransparency in clearversion

Color
BrilliantWhite,Transparent, Black,Grey

Packaging
300ml

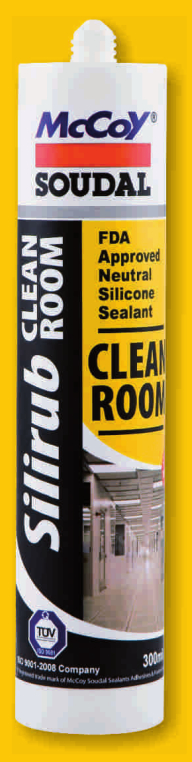

Silirub Cleanroom

FDA Approved Neutral Silicone Sealant
Description
Silirub Cleanroom is a high-quality neutral, elastic silicone sealant. The product has been developed for seahny, applications in critical surroundings (hospitals, laboratories, pharmaceutical industry) and in food safe applications.

Applications

Sealing in cleanroom applications and sealing in environments where food is handled and stored (food container: cold store installations, food industry, etc.)

Curing SystemMoisture Cure
Skin formation (20°C / 65% R.H .)Ca 30 min.
Curing Rate (20°CI65%RH)Ca1.5 mm/24h
Hardness (DIN 53505)20±5 ShoreA
Specific Gravity (DIN534 79)1.36 g/ml
Temperature Resistance-50°C to+120°c
Elastical Recovery (ISO 7389)>80%
Maximum allowed Distortion25.00%
Elasticity Modulus 100% (DIN 53504)0.35N/mm2
Maximum Tension (DIN 53504)2 N/mm2
Elongationat Break (DIN 53504)> 1200%

Characteristics
• Permanent color. UV-resistant
• Stays very elastic after curing
• Very good adhesion on many materials
• Almost no smell
• Sow skinning time therefore dally suited for long joint runs
• Tested according to FDA regulations code CFT 21 $ 177.2600 (e) and (f)

Color
White, other colours on request

Packaging
300 ml

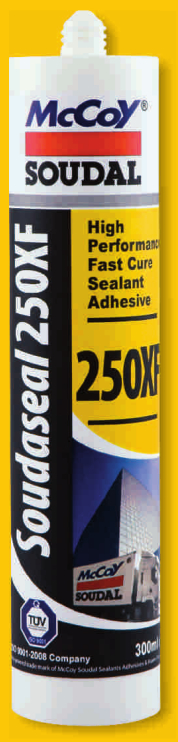

Soudaseal 250XF

High Performance Fast Cure Sealant Adhesive

Description
Soudaseal 250XF is high quality, neutral, one component adhesive/sealant with a high initial tack based on MS-Polymer technology.
Applications
Structural bonding applications in automobile industries (Cars, buses, trucks, marine, trains etc.) solar panel and wind mill applications. Structural elastic bonding in building and metal working industries. Elastic bonding of panels, profiles and other pieces on most of the common substrates.

Curing SystemMoisture Cure
Skin formation (20°C / 65% R.H .)Ca 5 min.
Curing Rate (20°CI65%RH)3 mm/24h
Hardness (DIN 53505)50+5 shore A
Elastical Recovery (ISO 7389)1.47 g/ml
Specific Gravity (DIN534 79)>75%
Temperature Resistance20.00%
Temperature Resistance-40C to +90C
elastity modulus 100% (DN 53504 )1.60 N/ mm2
Tear Strength ( DN 53504 )3.00 N/ mm2
Elongationat Break (DIN 53504)500.00%
Shear Strength> 2 N/mm2
SubstrateA|MgSi1
Thickness2mm
Shear Velocity10mm/min

Adhesion
Soudaseal 250XF has an excellent adhesion on almost all substrates. McCoy MS 50 has been experimented on the following metal surfaces: polycarbonate (Makrolon, polyamida. steel, AlMgSll . brass. PVC, electrolytic galvanized steel, PMMA, AJCuMg1, fame galvanized steel, AlMg1 and steel ST1403, polystyrene, ABS, pass fiber reinforced epoxy and polyester (GRP). Use of Surface Activator for optimum adhesion is always advisable.

Characteristics
• High performance mechanical properties
• Combines hipi stiffness with very high tend strength
• High green strength, quick build-up of end strength, hipi sheer strength after full cure
• Does not contain isocyanates, silicone, solvent
• Flexible elastic rubber – movement accommodation up to 20%
• No bubble formation within sealant (in high temperature and humidiry applicalths)
• Color stability and LW resistance
• Can be painted wet-on-wet in paint trains with most industrial paints
• Withstands all climatic conditions
• Minimal health and safety considerations

Colour
White. Black. Grey. Beige

Packaging
293 ml cartridges and 600 ml sausages

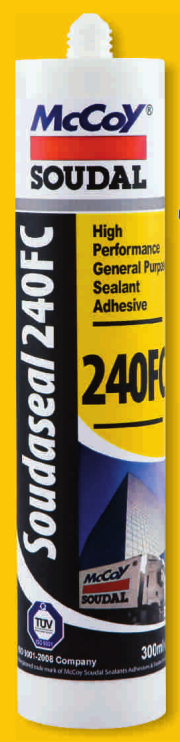

Soudaseal 240FC

High Performance General Purpose Sealant Adhesive

Description
Soudaseal 240FC is high quality single component joint sealant with high adhesive strength. It is based on MS-Polymerl chemically neutral and fully elastic.

Applications
Bonding and sealing in building industry. Sealing of floor joints, low movement wall joints, connection joints in sheet metal fabrication, structural bonding in vibrating constructions, sealing of air-conditioning systems. Also used in sanitary applications, safety and security glass bonding applications and supple bonding in caravans, containers, car bodies, solar panels, wind mill application and automobile applications, etc.

Curing SystemMoisture Cure
Skin formation (20°C / 65% R.H .)Ca 5 min.
Curing Rate (20°CI65%RH)2-3 mm/24h
Hardness (DIN 53505)40+5 shore A
Elastical Recovery (ISO 7389)>75%
Specific Gravity (DIN534 79)1.67 g/ml
Maximum Deformation20.00%
Temperature Resistance-40C to +90C
elastity modulus 100% (DN 53504 )0.75 N/ mm2
Tear Strength ( DN 53504 )1.80 N/ mm2
Elongationat Break (DIN 53504)750.00%
Shear Strength0.9 N/mm2
SubstrateA|MgSi1
Thickness2mm
Shear Velocity10mm/min

Adhesion
Soudaseal 240FC has an excellent adhesion on almost all substrates. Soudaseal 240FC has been experienced on the following metal surfaces: polycarbonate (Makrolon°), polyamide. steel. AlMg3i1, brass. PVC. electrolytic galvanized steel, PMMA, AlCuMgi , flame galvanized steel, AlMg and steel ST1403, polystyrene. ABS. glass fiber reinforced epoxy and polyester (GRP). While producing plastics very often releasing agents, processing aids and other protective agents are used. Use of Surface Activator for optimum adhesion is always advisable.
Characteristics
• Outstanding bond strength on nearly all surfaces, even on slightly wet surfaces
• Flexibleelastic rubber
• Straightforward application even in adverse conditions
• No bubble formation within sealant (in high temperature and humidityappications)
• Very easy to tool and finish
• Good exttudeabikty even at low temperatures
• Good color stability, weather and LW resistance
• Ecological advantages – free of isocyanates, solvents. halogens and acids
• Minimal health and safety considerations
• Can be painted with all water based paints and manyother systems
• No staining of porous materials such as natural stone, granite. marble. etc

Colour
White, Black. Grey. Beige, Concrete Grey

Packaging
290 ml cartridges and 600 ml sausages

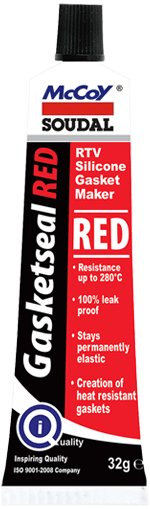

Gasketseal

RTV Silicone Gasket Maker

Description:
Gasketseal Red is a high quality, elastic one component sealant based on silicones which withstands very high temperatures.

Product Features:
. Resistance up to 280°C
. 100% leak proof
. Stays permanently elastic
. Creation of heat resistant gaskets

Applications:
. Creation of heat resistant gaskets
. Sealing between metal parts
. Gaskets in pumps and motors
. Sealing in heating systems
. Sealings in kitchen machinery

Precautions:
. Surface must be clean, dry & free of dust and grease/oil.
. Avoid eye contact.
. Uncured sealant may cause skin irritation, ensure good ventilation for indoor applications.
. Ensure right safety wares are worn when applying. Keep out of reach of children.
. Kindly refer to McCoy Soudal application Guide.

Packaging: Product Shade Card:
32g

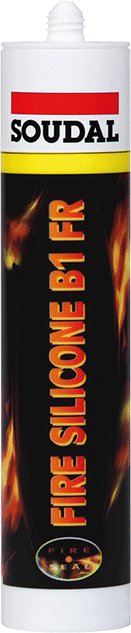

Fire Silicone B1 FR

Fire Retardant B1 Silicone Sealant

Description:
Firesilicone B1 FR is a high quality, neutral, elastic, one-component sealant based on silicones which conforms to the DIN4102 B1 standard for fire retardancy and has a fire rating of up to 4 hours in certain joint configurations (EN 1366 Part 4 – NN713.020 – BS 476/20).

Applications:
• All building and glazing joints which require a fire rating.
• Fire rated expansion joints.
BasePolysiloxane
ConsistencyStable Pasta
Curing SystemMoisture Cure
Skin FormingCa 20 min. (20°C/65% R.H.)
Curing Time*1mm/24h
Shore A Hardness16 Shore A
Specific GravityCa 1,17g/cm³
Temperature Resistance-40°C until +140°C
Elongation at Break900% (DIN52455)
E-Modulus 100%0,20N/mm² (DIN52455)
Elastical Recovery>90% (DIN52455)
Maximum Deformation±25%
Characteristics :

• Very easy to apply
• Colorfast and UV-resistant
• Remains permanently elastic after full cure
• Very good adhesion on most surfaces
• DIN 4102-Part 2: Class B1
• Up to 4 hours fire rating with normal PE backing material

Color:Packaging:Product Shade Card:
White, Grey310ml, Foilbag 600ml

Click here to download: TDS | Sealants Usage Calculator

Product Features :

• Fire Silicone B1 FR is used in all building and glazing joints which require a fire rating.
• Fire Silicone B1 FR is very easy to apply.
• Fire Silicone B1 FR remains permanently elastic after full cure

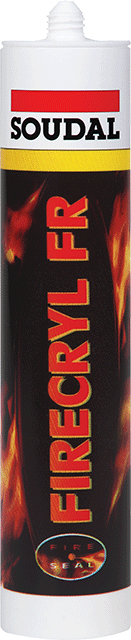

Firecryl FR

Fire Retardant Paintable Acrylic Sealant

Product:
Firecryl FR is a one-component intumescent plastoelastic joint sealant based on acrylic dispersions.

Applications:
• Interior fire-resistant applications
• Fire-resistant sealing compound for cracks in concrete and plaster
• Fire-resistant connection joints in the building industry
• Fire-resistant joints with movements up to 10%.
BaseAcrylic Dispersion
ConsistencyPasta
Curing SystemPhysical drying
Skin formation (20°C/65% R.H.)Approx. 20 min.
Shrinkage (DIN 52451)Approx. 15%
Specific Gravity (DIN 53479B)1,40 g/ml
Temperature Resistance-20°C to +80°C
Maximum allowed Distortion10%



Characteristics :
• Resist the passage of fire and smoke
• Fire resistant up to 4 hours with PE backer rod (EN 1366 Part 4-NBN713.020- BS 476/20)
• Intumescent in contact with fire
• Swells when exposed to temperatures in excess of 120°C
• Stays elastic and can be painted over
• Colourfast and waterproof after curing
• Very good adhesion on many porous surfaces
• Can be painted over after curing

Shelflife :
At least 12 months in unopened packaging in a cool and dry storage place at temperatures between +5°C and +25°C. Protect against frost!

Color:Packaging:Product Shade Card:
White, Grey310ml, Foilbag 600ml

Click here to download: TDS | Sealants Usage Calculator

Product Features :

• Firecryl FR acrylic sealant is a fire retardant acrylic sealant.
• Firecryl FR acrylic sealant is a paintable acrylic sealant.
• Firecryl FR acrylic sealant is waterproof and paintable sealant after curing.
• Firecryl FR is a one-component intumescent plastoelastic joint sealant based on acrylic dispersions.
• Firecryl FR acrylic sealant resists the passage of fire and smoke.
• Firecryl FR acrylic sealant stays elastic.
• Firecryl FR acrylic sealant is used for connection joints in the building industry.
• Firecryl fire acrylic sealant is available in grey and white colors.
• Firecryl fire acrylic sealant comes in 310ml cartridge and 600ml foilbag.

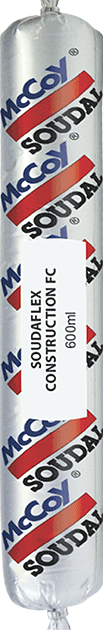

Soudaflex Construction FC

High Quality, One – Component Polyurethane Sealant

Description:
Soudaflex Construction FC is a high quality, one component polyurethane sealant with high modulus for a wide range of sealing and bonding applications.

Applications:
• All sealing and bonding applications in the building industry.
• Structural bonding in vibrating constructions.
BasePolyurethane
ConsistencyPaste
Curing SystemMoisture Cure
Skin formation (20°C/65% R.H.)Ca 15 min.
Curing Rate (20°C / 65% R.H.)Ca 3 mm/24h
Hardness (DIN 53505)40 ± 5 Shore A
Specific Gravity (DIN 53479)1,30 g/ml
Temperature Resistance-30°C to +90°C
Elastic Recovery (DIN 7389)> 80%
Maximum allowed Distortion20%
Elasticity Modulus 100% (DIN 53504)0.80 N/mm²
Maximum Tension (DIN 53504)1.70 N/mm²
Elongation at Break (DIN 53504)700%
Characteristics :
• Very easy application.
• Stays elastic after curing.
• Excellent resistance to UV radiation.
• Very good adhesion on many materials.
• Excellent resistance to many chemicals.
• Especially developed for concrete applications.

Color:Packaging:Product Shade Card:
White, Grey, Black, Other colours on requestCartridge 310ml, Sausage
 300ml, 400ml, 600ml
Click here to download: TDS | Sealants Usage Calculator

Product Features :

• Soudaflex Construction FC Polyurethane Sealant is a high quality, long lasting single component
   polyurethane sealant for wide range of sealing and bonding applications.
• Soudaflex Construction FC Polyurethane Sealant has been developed for all sealing and bonding
   applications in the building industry.
• Soudaflex Construction FC Polyurethane Sealant is used for Structural bonding in vibrating
   constructions.
• Soudaflex Construction FC Polyurethane Sealant stays elastic after curing.
• Soudaflex Construction FC Polyurethane Sealant has very good adhesion on many materials.
• Soudaflex Construction FC Polyurethane Sealant has Especially developed for concrete
   applications.
• Soudaflex Construction FC Polyurethane Sealant is available in White, Black and Grey colors.
