TORCHES
Cutting torches
UNIVERSAL NM250
GCE cutters are engineered from solid brass stampings with silver soldered joints and provide a lightweight, well balanced, durable cutter giving reliability.With rear mounted valves and cutting lever and round handle.
Cutter employs the nozzle mix principle, in which the combustible gas mixing is confined to the cutting nozzle. This results in a cutter which is highly resistant to backfire and flashback. A wide range of accessories are available for this cutter, such as attachments for heating, gouging, sheet metal nozzles, circle attachments, etc., to give maximum possible versatility. GCE torches and nozzles conform to EN ISO 5172.
| Art. Nr. | Description | Head Angles | Weight |
| 766225 | 460 mm (18” ) | 90° | 1,25 kg |
| 766226 | 700 mm (27” ) | 90° | 1,4 kg |
| 0764510* | 855 mm (33” ) | 90° | 1,5 kg |
| 0764511* | 855 mm (33” ) | 90° | 1,8 kg |
| Hose connections: | G3/8” – G3/8” LH |
| Cutting capacity: | 300 mm (12”) |
| Cutting nozzles: | ANME (Acetylene) Cutting Nozzles |
| PNME (Propane) Cutting Nozzles | |
| HA311-1 Sheet Metal Nozzles | |
| AGNM Gouging Nozzles | |
| ARCNM Rivet Cutting Nozzles | |
| Gas: | Acetylene or Propane |
Heating torches

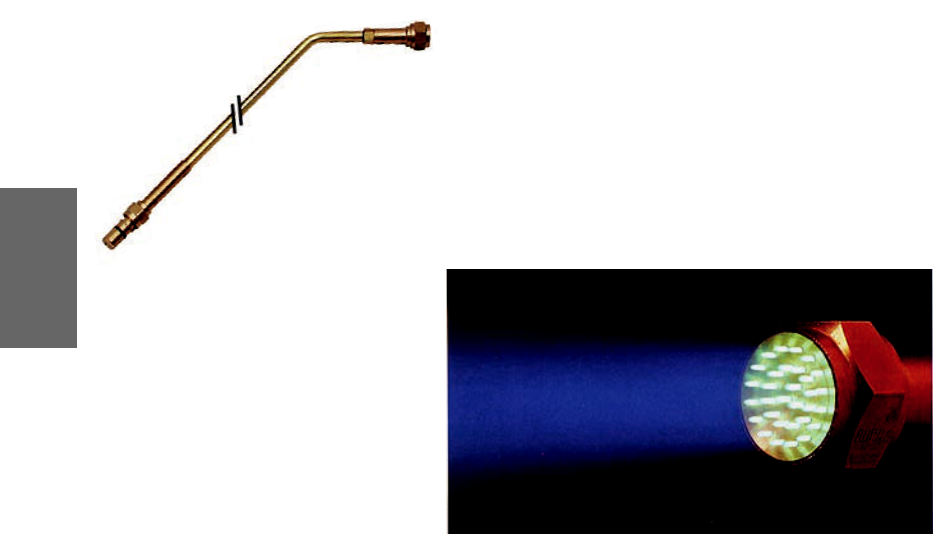

SHOWER HEATING TORCHES ACETYLENE
| Art. Nr. | Shank connection | Nozzle size | Lenght |
| 14004175 | RHÖNA 2001 | 4 | 240 |
| 14004176 | RHÖNA 2001 | 6 | 240 |
| 14003283 | RHÖNA 2001 | 6A | 400 |
| 14004171 | KOMBI 17 | 4 | 240 |
| 14004172 | KOMBI 17 | 6 | 240 |
| 14003280 | KOMBI 17 | 6A | 400 |
| 14004179 | RHÖNA 2001 | 7 | 670 |
| 14004180 | RHÖNA 2001 | 9 | 670 |
| 14004161 | KOMBI 17 | 7 | 670 |
| 14004162 | KOMBI 17 | 9 | 670 |
| 14004185 | SP 22 | 7 | 670 |
| 14004186 | SP 22 | 9 | 670 |

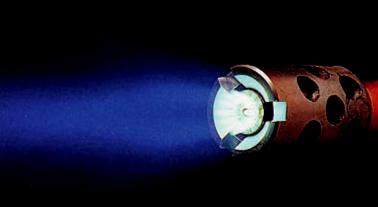

HIGH PERFORMANCE ACETYLENE HEATING TORCHES
NEF / S size 12 and 13 with 12 flame channels with cooling and protective extension for heavy heating applications, e.g. for flame straightening of large steel structures
| Art. Nr. | Shank connection | Nozzle size | Lenght |
| 14004177 | RHÖNA 2001 | 12 | 695 |
| 14004178 | RHÖNA 2001 | 13 | 695 |
| 14004165 | KOMBI 17 | 12 | 695 |
| 14004166 | KOMBI 17 | 13 | 695 |
| 14004183 | SP 22 | 12 | 750 |
| 14004184 | SP 22 | 13 | 750 |
HEATING TORCH S
These torches can be used for brazing all materials. For glass or quartz glass processing S-burners can be used successfully. A concentric primary flame provides the necessary performance. Surrounding secondary flame stabilizes the primary stream without performance restriction.
| Art. Nr. | Shank connection | Nozzle size | Lenght |
| 14003700 | RHÖNA 2001 | 1S | 210 |
| 14003701 | RHÖNA 2001 | 2S | 240 |
| 14003702 | RHÖNA 2001 | 3S | 270 |
| 14003703 | RHÖNA 2001 | 4S | 310 |
| 14003704 | RHÖNA 2001 | 4S | 340 |
| 14003705 | RHÖNA 2001 | 6S | 380 |
| 14003109 | KOMBI 17 | 1S | 210 |
| 14003110 | KOMBI 17 | 2S | 240 |
| 14003111 | KOMBI 17 | 3S | 240 |
| 14003112 | KOMBI 17 | 4S | 340 |
| 14003096 | KOMBI 17 | 5S | 340 |
| 14003098 | KOMBI 17 | 6S | 380 |
HEATING TORCH DS
Torch DS is suitable for spot heating and flame straightening of steel structures. It could also be used where a narrow preheated area is required. The flame of the DS heating nozzle is very centralized and strong.
| Art. Nr. | Shank connection | Nozzle size | Lenght |
| 14003706 | RHÖNA 2001 | DS1 | 380 |
| 14003707 | RHÖNA 2001 | DS2 | 410 |
| 14003708 | RHÖNA 2001 | DS3 | 510 |
| 14003709 | RHÖNA 2001 | DS4 | 660 |
| 14003212 | KOMBI 17 | DS1 | 380 |
| 14003213 | KOMBI 17 | DS2 | 410 |
| 14003214 | KOMBI 17 | DS3 | 510 |
| 14003215 | KOMBI 17 | DS4 | 660 |
| 14027916 | SP22 | DS5 | 760 |
| 14027917 | SP22 | DS6 | 760 |
HEATING TORCH D
Torch D is suitable for the heating of steel structures with an extremely powerful flame.
| Art. Nr. | Shank connection | Nozzle size | Lenght |
| 14003710 | RHÖNA 2001 | D1 | 290 |
| 14003711 | RHÖNA 2001 | D2 | 490 |
| 14003712 | RHÖNA 2001* | D3 | 650 |
| 14003182 | KOMBI 17 | D1 | 290 |
| 14003183 | KOMBI 17 | D2 | 490 |
| 14003184 | KOMBI 17 | D2 | 650 |
| 14027209 | KOMBI 17* | D3 | 710 |
| 14027920 | SP22 | D4 | 710 |
| 14027210 | SP22 | D5 | 710 |
HEATING TORCH DK
Torch DK is the best choice for the heating of steel structures with extremely concentrated flames. The heating nozzle provides optimum heating time. This is made possible by high heat density of the gas supplied via a central channel surrounded by large slots around. Due to the large heat capacity of the DK torch it is highly recommended to use it in well ventilated areas.
| Art. Nr. | Shank connection | Nozzle size | Lenght |
| 14003713 | RHÖNA 2001 | DK2 | 490 |
| 14003714 | RHÖNA 2001* | DK3 | 650 |
| 14003334 | RHÖNA 2001* | DK2 | 650 |
| 14003335 | KOMBI 17* | DK3 | 650 |
| 14027336 | SP22 | DK3 | 710 |
HEATING TORCH T
Torch T is suitable for surface heating with high flame power. It is very well suited for fast and efficient heating.
| Art. Nr. | Shank connection | Nozzle size | Lenght |
| 14003567 | KOMBI 17 | T2 | 490 |
| 14003568 | KOMBI 17 | T3 | 650 |
| 14003569 | KOMBI 17 | T4 | 650 |
| 14003564 | RHÖNA 2001 | T2 | 650 |
| 14003565 | RHÖNA 2001 | T3 | 490 |
| 14003566 | RHÖNA 2001 | T4 | 650 |
| 14027570 | SP22 | T5 | 650 |
| 14027571 | SP22 | T6 | 710 |
HEATING TORCH TS
Torch TS is recommended for spot heating and flame straightening at high flame stream performance and the use of alternative fuel gases.
| Art. Nr. | Shank connection | Nozzle size | Lenght |
| 14003577 | KOMBI 17 | TS4 | 410 |
| 14003578 | KOMBI 17 | TS5 | 490 |
| 14003579 | KOMBI 17 | TS5 | 650 |
| 14003561 | RHÖNA 2001 | TS4 | 410 |
| 14003562 | RHÖNA 2001 | TS5 | 490 |
| 14003563 | RHÖNA 2001 | TS6 | 650 |
| 14027580 | SP22 | TS7 | 760 |
| 14027581 | SP22 | TS8 | 760 |
